PRESS BOARD

Pressboard sheet is a type of electrical insulation material that is widely used in various electrical applications. It is made from compressed cellulose fibers, which are bonded together using a resin binder. Pressboard sheets offer a combination of electrical, mechanical, and thermal properties that make them suitable for a wide range of insulation purposes.

Electrical Properties

• High dielectric strength: Pressboard sheets have a high dielectric strength, allowing them to withstand high electrical fields without breaking down.
• Low dielectric constant: The dielectric constant of pressboard is relatively low, which minimizes the capacitance between conductors.
• Low dissipation factor: Pressboard sheets have a low dissipation factor, reducing energy losses in electrical circuits.

Mechanical Properties

• High tensile strength: Pressboard sheets have high tensile strength, allowing them to withstand mechanical stresses.
• Good compressive strength: Pressboard sheets have good compressive strength, enabling them to resist deformation under pressure.
• Flexibility: Pressboard sheets are flexible, making them easy to work with and shape.

Thermal Properties

• High thermal conductivity: Pressboard sheets have relatively high thermal conductivity, allowing them to dissipate heat effectively.
• Good thermal stability: Pressboard sheets are thermally stable and can withstand high temperatures without degrading.

Applications

Pressboard sheets are used in a wide range of electrical applications, including:

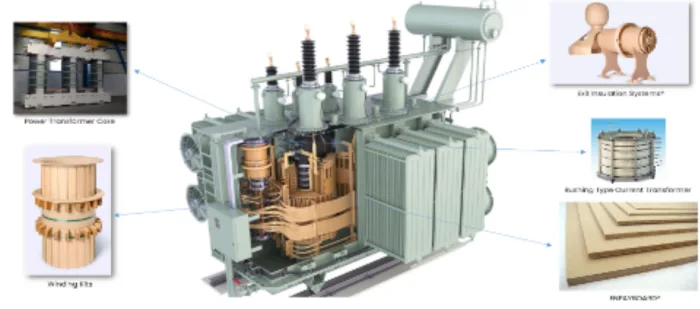

• Transformers: Used as insulation between windings and the core.
• Capacitors: Used as insulation between electrodes.
• Circuit breakers: Used as arc chutes and insulation barriers.
• Motors: Used as slot liners and end winding insulation.
• Generators: Used as insulation between stator windings.

Advantages

• Excellent electrical properties: High dielectric strength, low dielectric constant, and low dissipation factor.
• Good mechanical properties: High tensile strength, compressive strength, and flexibility.
• High thermal conductivity: Dissipates heat effectively.
• Good thermal stability: Withstands high temperatures without degrading.
• Versatile: Can be used in a wide range of electrical applications.

Disadvantages

• Moisture absorption: Pressboard sheets can absorb moisture, which can affect their electrical properties.
• Susceptible to aging: Pressboard sheets can deteriorate over time, especially in harsh environments.

Conclusion

Pressboard sheet is a versatile and durable material that offers excellent electrical, mechanical, and thermal properties. It is widely used in various electrical applications, including transformers, capacitors, circuit breakers, motors, and generators. However, it is important to consider the limitations of pressboard sheets, such as their moisture absorption and susceptibility to aging, when selecting them for specific applications.
