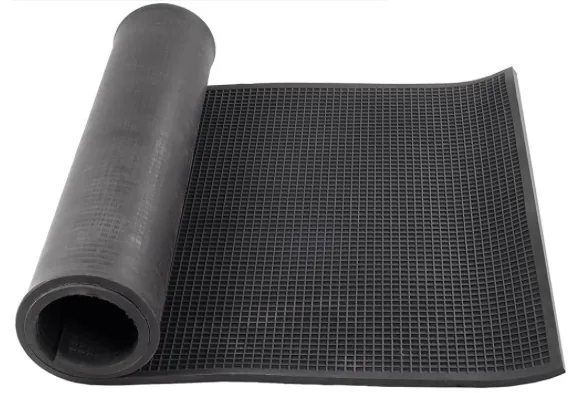

CHEQUERED ELECTRICAL MATS

In the realm of electrical safety, chequered electrical mats play a crucial role in providing a safe working environment. These mats, made of rubber, are designed to protect workers from electrical hazards and prevent accidents. In India, the standard for chequered electrical mats is set by the Indian Standard (IS) 5424. This article aims to provide a comprehensive guide to chequered electrical mats, focusing on their design, materials, and the IS 5424 standard.

Design and Materials

Chequered electrical mats are designed to provide a safe and non-conductive surface for workers in electrical environments. The mats are made of high-quality rubber, which is an excellent insulator and provides excellent resistance to electrical currents. The chequered pattern on the mat's surface helps to increase the surface area, which in turn enhances the mat's insulating properties. The chequered pattern also provides a slip-resistant surface, ensuring that workers can move around safely without the risk of slipping or falling. The mats are typically available in various sizes and thicknesses to cater to different applications and environments.

IS 5424 Standard

The Indian Standard (IS) 5424 is the benchmark for chequered electrical mats in India. This standard specifies the requirements for the design, construction, and testing of chequered electrical mats. The standard ensures that the mats meet the necessary safety requirements and provide adequate protection to workers in electrical environments. Some of the key requirements of the IS 5424 standard include:

• Insulation Resistance: The insulation resistance of the mat should be at least 100 MΩ when tested under dry conditions. This ensures that the mat provides adequate insulation against electrical currents.
• Dielectric Strength: The dielectric strength of the mat should be at least 10 kV when tested under wet conditions. This ensures that the mat can withstand high voltages without breaking down.
• Surface Resistance: The surface resistance of the mat should be at least 10^9 Ω when tested under dry conditions. This ensures that the mat provides adequate protection against electrical shocks.
• Dimensional Stability: The mat should maintain its dimensions and shape under various environmental conditions, such as temperature and humidity.
• Slip Resistance: The mat should provide a slip-resistant surface to prevent accidents and injuries.
• Durability: The mat should be durable and resistant to wear and tear, ensuring that it can withstand the rigors of daily use in industrial environments.

Conclusion

Chequered electrical mats are an essential component of electrical safety in industrial environments. The Indian Standard (IS) 5424 ensures that these mats meet the necessary safety requirements and provide adequate protection to workers. By adhering to this standard, manufacturers can ensure that their chequered electrical mats are of the highest quality and provide the best possible protection to workers in electrical environments. ```
